Slurry Pump Drive End Parts

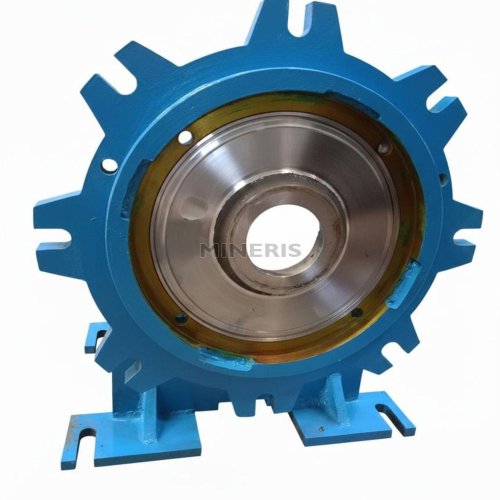

We offer a high-quality Bearing Frame designed for Metso Slurry Pump applications. Made of durable Mild Steel, this heavy-duty frame supports the shaft and bearing assembly efficiently. It features direct fit mounting on the pump frame and baseplate for easy installation. The Bearing Frame is designed to provide reliable support and is compatible with both grease and oil lubrication systems. As a leading Manufacturer, Exporter, and Supplier, we ensure top-notch quality and performance for all your industrial needs.

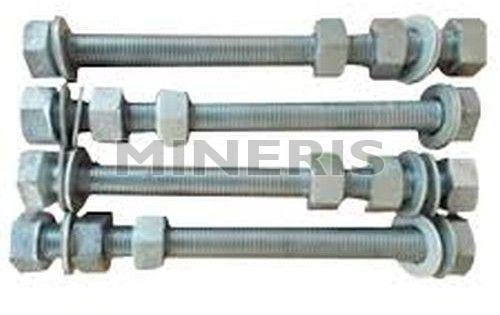

Slurry pump adjusting screw basic part number is 001, its function is to adjust impeller clearance. Slurry pump adjusting screw include one bolt, three nuts and three gasket. Slurry pump adjusting screws are normally made in carbon steel plating zinc.

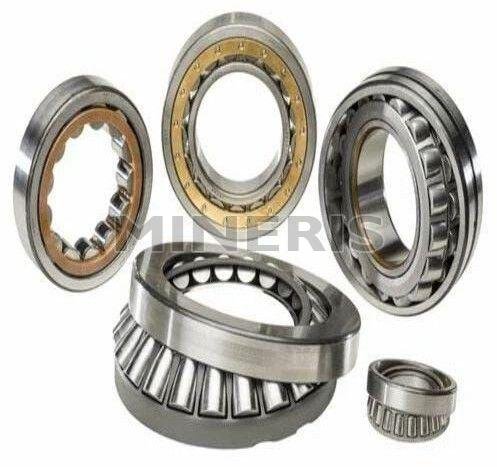

Slurry pump bearing basic part number is 009, its function is to constrain shaft to only rotation in bearing housing.

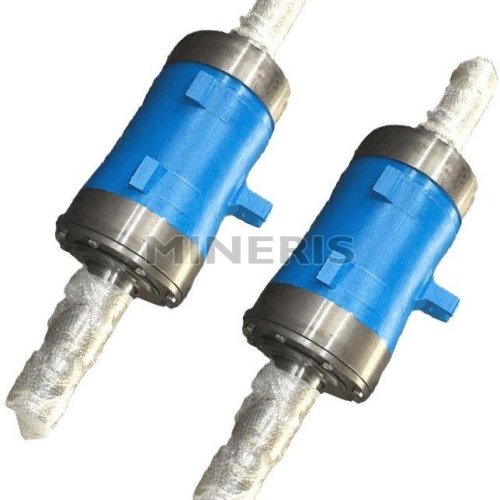

Compared to water pump, slurry pump bearing assembly has a large diameter shaft with a short overhang minimizes deflection and vibration. Standard slurry pump bearing assembly has two sets of single row tapered roller bearings which are face-to-face installed in a removable bearing housing, high capacity bearing assembly has one set of double-row tapered roller bearing installed near the slurry pump impeller and one or two sets of cylindrical roller bearing installed near the motor. Standard and high capacity bearing assemblies are dimensionally interchangeable.

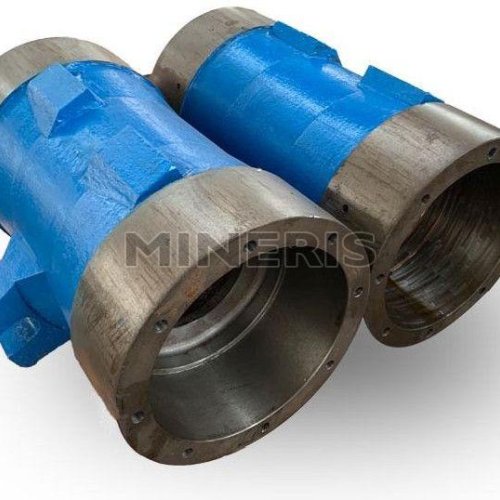

Slurry pump bearing housing basic part number is 004, it is container of bearings and shaft. There are four clamp bolts through the base which fasten the slurry pump bearing housing. Slurry pump bearing housings are normally made in grey iron material, ductile iron is also available.

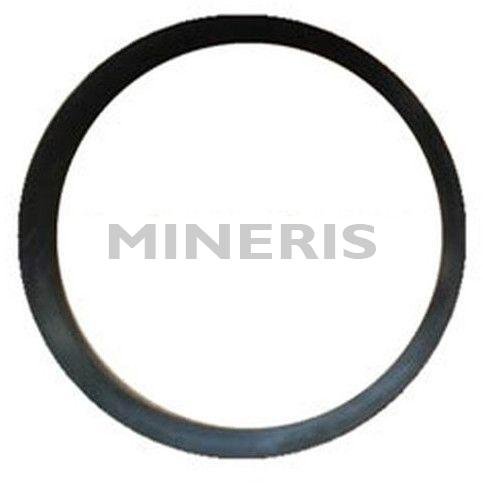

Slurry pump bearing seal basic part number is 089, it is a improvement of bearing assembly sealing. Slurry pump bearing seal is a V-ring seal that are normally made in rubber.

Slurry pump clamp bolt basic part number is 012, its function is to fit the bearing assembly to base. Slurry pump clamp bolts are normally made in carbon steel plating zinc.

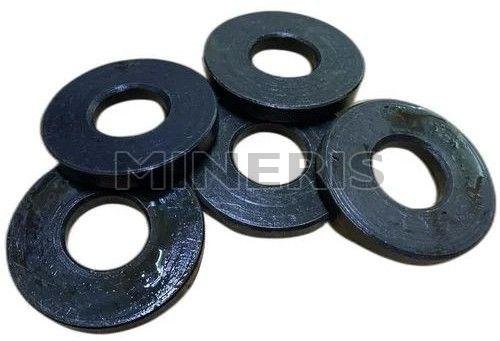

Slurry pump clamp washer basic part number is 011, its function is to fit the bearing assembly to base. Slurry pump clamp washers are normally made in carbon steel plating zinc.

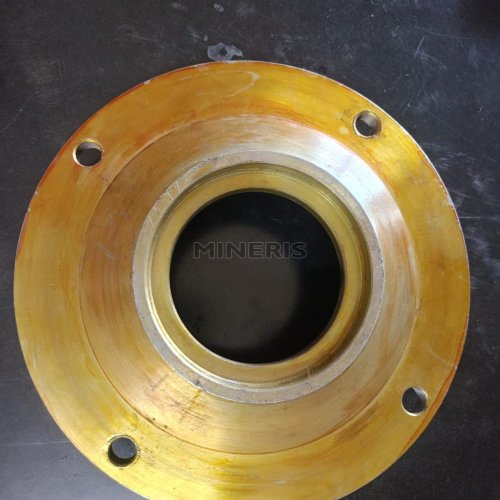

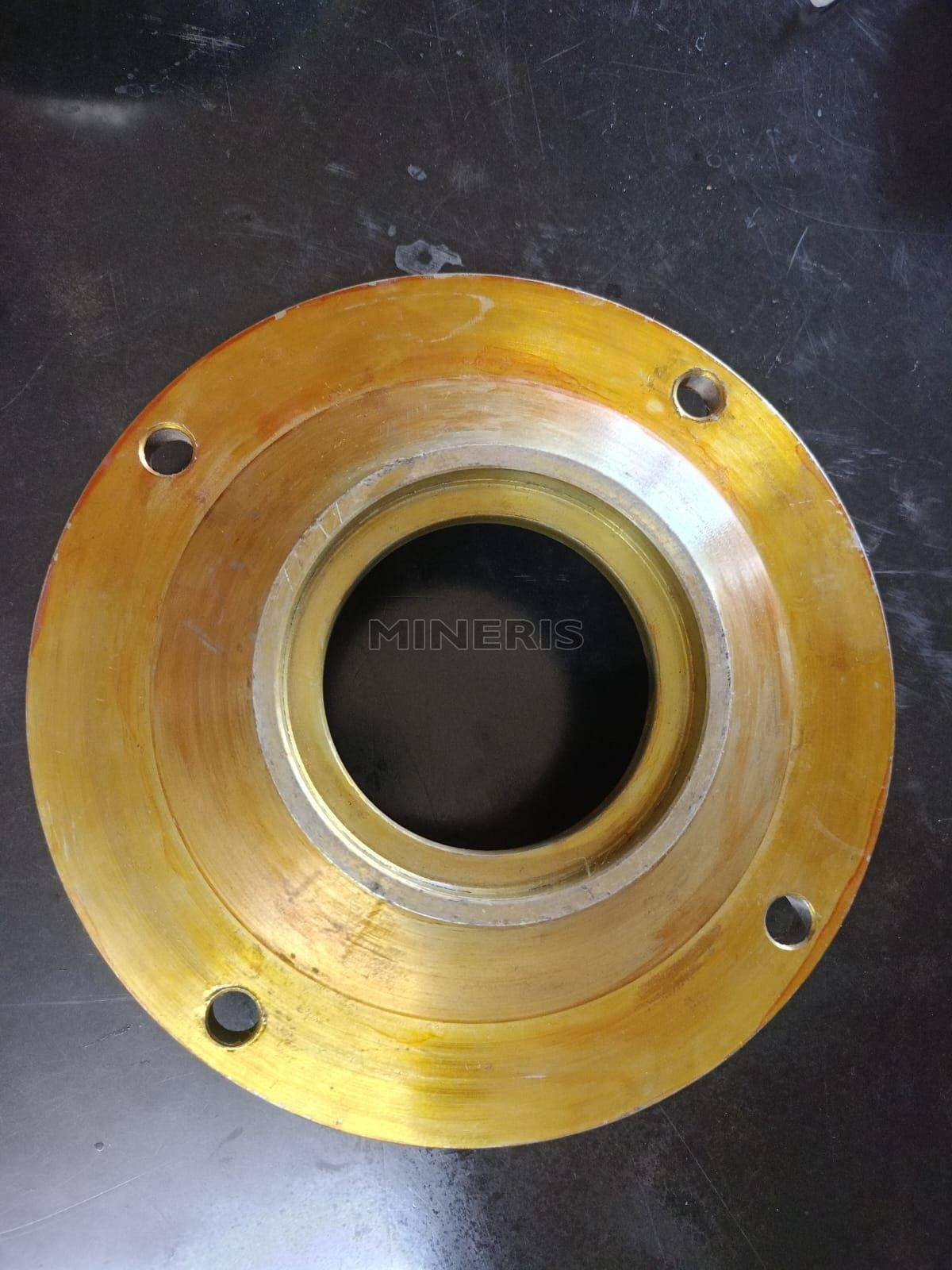

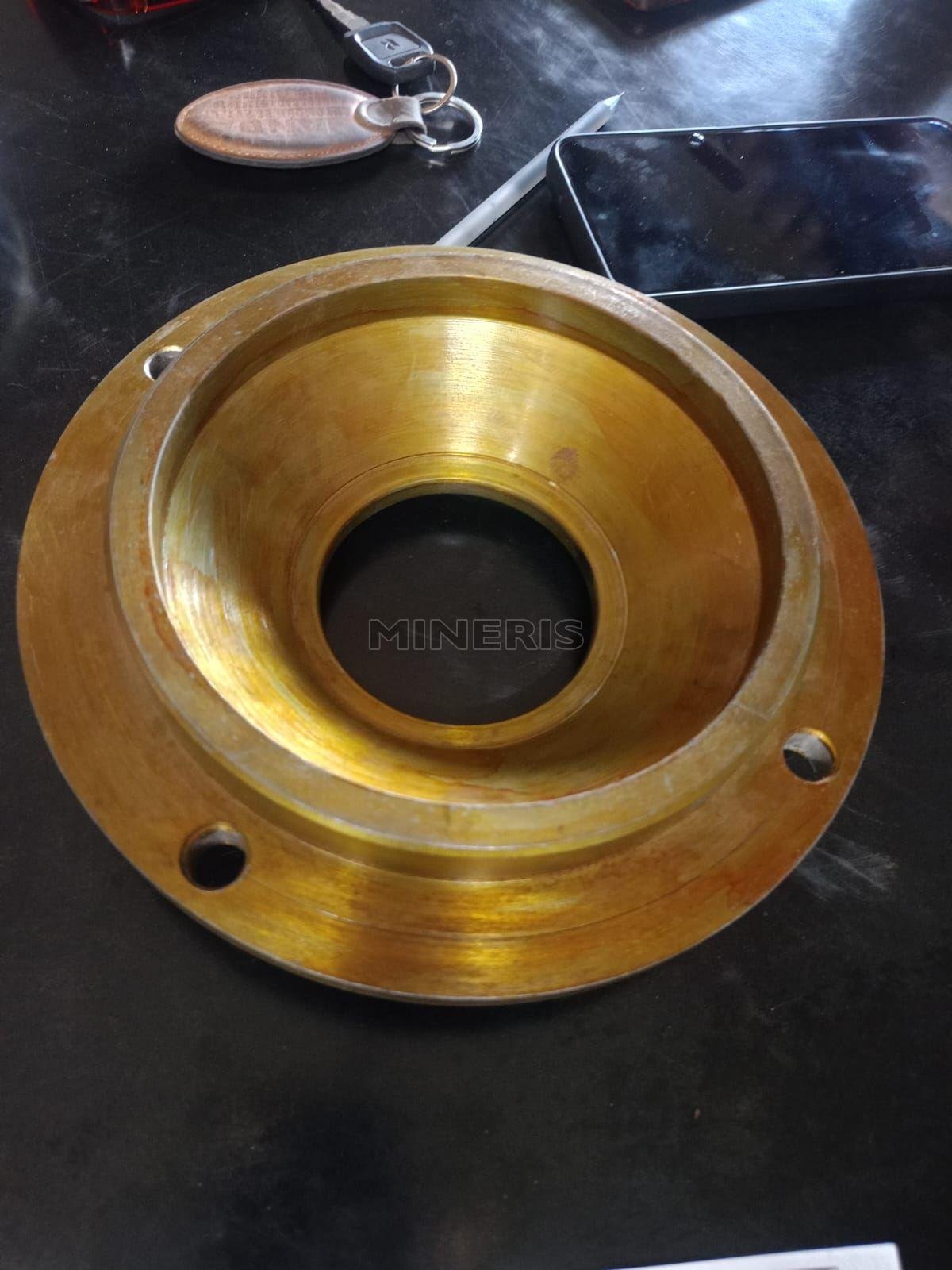

Slurry pump end cover is one of drive end parts which is installed on both ends of bearing housing to fix the bearings. Slurry pump end cover are normally made in grey iron material, ductile iron and steel are also available.

Slurry pump grease retainer basic part number is 046, its function is to keep grease in bearings area. Slurry pump grease retainer are normally made in grey iron material, ductile iron and steel are also available.

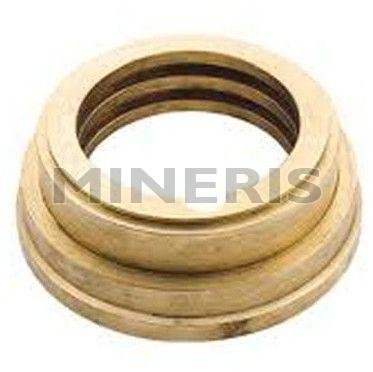

Slurry pump labyrinth is a component of drive end parts, its purpose is to plug the hole in bearing housing where the shaft passes through. Slurry pump labyrinth are normally made in grey iron material, ductile iron is also available.

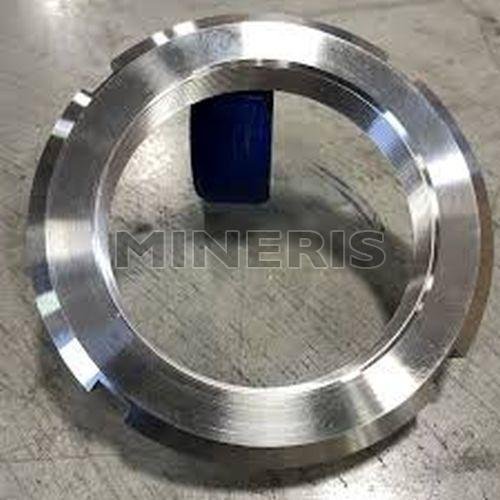

Slurry pump labyrinth locknut basic part number is 061, its function is to fasten the labyrinth of drive end. Slurry pump labyrinth locknuts are normally made in carbon steel plating zinc.

Slurry pump piston ring basic part number is 108, its function is to form a maze together with labyrinth to keep contaminants out of the bearings. Slurry pump piston rings are normally made in grey iron material, ductile iron is also available.

Slurry pump shaft is one of drive end parts which connect impeller to drive device. Slurry pump shafts are normally made in carbon steel, special material is also available.
